How to Run a Longer Starlink Cable Safely: Planning, Protection and Testing

Independent guide: Starlink Tips is not part of Starlink. Hardware, plans and availability can change; check the instructions and terms for your exact kit.

Claim Your Free Month

Order through my referral link and activate your service. Your second month of Starlink service will be free.

Why a longer run needs planning

Moving the Starlink router farther from the dish can make a room, outbuilding or office much easier to use. The risky part is treating every cable in the setup as if it were a normal Ethernet patch lead.

Starlink kits differ. The cable between the terminal and the router can be kit-specific, can carry power, and can use connectors or weather seals that should not be cut, spliced or forced through a small hole. A cable from an Ethernet output to your own router, switch or computer is a different part of the network.

This guide helps you plan a longer route without guessing at a maximum length that may not apply to your hardware.

Start by identifying the cable you are extending

Before buying anything, draw your current layout:

• Dish or terminal
• Terminal-to-router cable
• Starlink router or Ethernet Adapter
• Third-party router, switch or access point, if used
• Wired devices

The safest extension point is usually the network side of the setup, using the Ethernet output and cabling supported by your exact kit and router layout. Do not replace the terminal cable with a random Ethernet cable just because the plugs look similar.

If your kit has no usable Ethernet output, check the current instructions for that model before buying an adapter. Do not assume that a passive coupler, generic extension lead or Power over Ethernet switch can carry the power and data your terminal needs.

Measure the route before ordering cable

Measure the path the cable will actually follow, including:

• The distance from the router or Ethernet output to the wall entry
• The vertical drop or climb along the wall
• The route around corners, beams and doors
• A gentle service loop at each end
• Enough slack to remove a connector or move equipment for service

Avoid measuring in a straight line and then pulling the cable tight. A tight run transfers movement into the connectors and leaves no room to work later.

Keep the route away from:

• Mains wiring and electrical panels
• Hot flues, boilers and direct exhaust
• Sharp sheet metal, roof edges and moving doors
• Standing water, flood-prone ground and places where people will step
• Areas where lawn equipment, vehicles, pets or wildlife can reach it

If the cable must cross a busy walkway or a vehicle route, change the route or protect it with a purpose-built channel. Do not rely on a loose cable cover as a permanent outdoor installation.

Choose the right installation method

Indoor Ethernet extension

If the extra distance is inside the building and you are extending from a supported Ethernet output, use a suitable Ethernet cable, keep the bend radius gentle and protect it from crushing. Label both ends before you hide the run.

A longer indoor Ethernet run is usually easier to replace than a buried or wall-sealed terminal cable. Still, confirm that the device at each end is connected to the correct router side: WAN for a third-party router, LAN for a switch or wired client.

Exterior conduit

For an outdoor section, conduit can protect against sunlight, impact, animals and accidental snagging. Use conduit and fittings rated for the environment, and choose a diameter that lets the actual connector pass through without forcing it.

Plan wide sweeps rather than tight 90-degree bends. Several gentle bends are easier to pull through and easier to service later. Do not fill the conduit so tightly that the cable is crushed or cannot be replaced.

Keep the conduit supported and avoid creating a low point that holds water. If the installation method allows water to enter, provide a sensible drain path at the lowest point rather than trapping water around the cable.

Buried or underground sections

Treat an underground route as a construction job, not as a shortcut. Check local requirements, locate buried utilities before digging and use conduit intended for underground service. Do not bury a connector, splice or indoor-rated cable directly in soil.

A shallow trench, unmarked service and unprotected cable can become a safety problem during future gardening or building work. Mark the route and keep a simple record of where it runs.

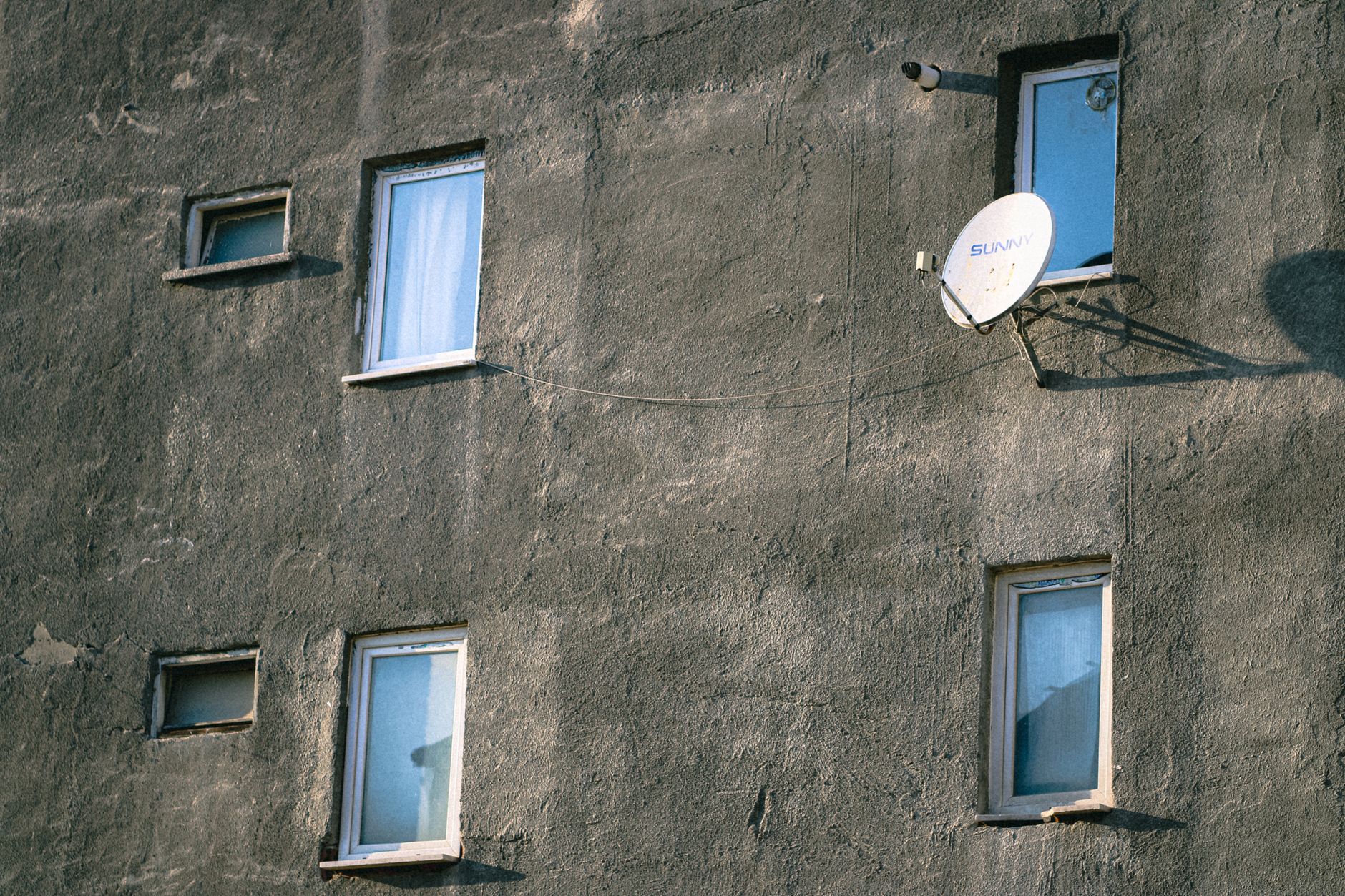

Make the wall entry serviceable

A neat wall entry is also a point where water, insects and cable damage can begin. Use these steps:

1. Check both sides of the wall and confirm that you are not drilling into electrical, plumbing or structural services.
2. Drill the opening with a slight fall toward the outside so water does not run inward.
3. Fit a smooth grommet or sleeve so the cable does not rub against masonry.
4. Leave a small drip loop outside, below the entry point, so rain cannot track straight into the wall.
5. Seal the gap around the cable with an exterior-rated sealant that can be removed for future service.
6. Keep the connector and any power equipment dry and accessible.

Do not bury the connector inside sealant or foam. If the cable ever needs to be replaced, a permanent blob around the plug can turn a simple repair into wall damage.

Secure the cable without damaging it

Use clips, saddles or conduit supports that match the cable diameter and outdoor conditions. Leave enough room that the jacket is held in place without being pinched.

Avoid:

• Staples driven over the cable
• Tight zip ties that leave an indentation
• Sharp bends at the router, adapter or wall entry
• Pulling on the connector to move the cable
• Hanging equipment from the cable
• Coiling excess cable into a tight, hot bundle

Leave a gentle service loop near equipment, but do not coil large amounts of cable tightly. Keep connectors supported so their weight is not hanging from a port.

Test the route in stages

Test before you close the wall, bury the conduit or climb down from the roof.

Before securing the cable

• Connect the system in the planned layout on the ground or indoors.
• Confirm that the terminal comes online and the Starlink app shows normal connectivity.
• Run a simple speed test from one nearby device.
• Label both ends of the cable and take a photo of the layout.
• Mark the exact route and note where the service loops will sit.

After routing but before sealing

• Check that the cable is not kinked, crushed or under tension.
• Confirm that every connector is fully seated according to the kit instructions.
• Power up and wait for the normal connection state.
• Compare the same device and test location with your original result.
• Gently check the cable supports without bending the connector or pulling the plug.

After sealing and finishing

• Test internet access from the router and from one wired device if applicable.
• Open the Starlink app and confirm the terminal is reachable.
• Check for intermittent drops over a longer observation period, not just one successful page load.
• Inspect the outside after rain for water collecting at the entry or conduit.
• Keep the route record with your household network notes.

A route that works for five minutes may still have a loose connection, a damaged jacket or a water-entry problem. Retest after the first heavy rain and after any work near the cable.

Troubleshooting a longer run

The terminal does not power up: Disconnect the new route and restore the original short layout. Check the exact cable type, connector seating and power equipment. Do not substitute a PoE injector or random cable to see whether it works.

The connection drops when the cable moves: Look for a tight bend, a crushed section, a connector hanging under strain or a clip that is biting into the jacket. Replace damaged cable rather than hiding the weak point.

The router works, but a wired device has no internet: Check whether the cable is connected to a LAN-side output, a third-party router WAN port or the wrong side of a bypass layout. Confirm that only the intended router is providing addresses.

The app loses contact with the terminal after a router change: Restore the simplest known-good layout first. A longer cable and a new router configuration create two variables; isolate them before changing routes or firewall settings.

The cable works indoors but fails outdoors: Inspect the entry, drip loop, conduit ends and exposed jacket. Moisture, UV damage and movement can appear only after the route has been outside for a while.

Final checklist

• [ ] The exact Starlink kit and cable type were identified before extending anything.
• [ ] The route has enough length for gentle bends and service loops.
• [ ] The cable is away from mains wiring, heat, water and mechanical hazards.
• [ ] Outdoor sections use suitable conduit or protection.
• [ ] No connector or splice is buried or permanently sealed.
• [ ] Wall entries have a grommet, exterior seal and drip loop.
• [ ] Clips and supports hold the cable without crushing it.
• [ ] The original layout was tested before the route was hidden.
• [ ] The finished route was tested from the app and from a real device.
• [ ] The route was recorded for future repairs and building work.

For general weather and animal protection, see How to Protect Starlink Cables from Weather and Damage. If you are adding wired devices indoors, see How to Add an Ethernet Switch to Starlink for Multiple Wired Devices.
